Detail produk:
|
| Nama: | Liner keausan keramik | Bahan: | 92%,95% AI2O3 keramik, bantalan karet/PU/pelat baja |
|---|---|---|---|
| Pengancing: | Baut, Magnetik, Countersink, dll. | Bentuk Keramik: | Silinder, Kerucut, Ubin heksagonal, Bentuk khusus |
| Warna: | hitam, putih, merah, oranye, dll | Pelat Penopang Baja: | Baja Ringan Atau Stainless Steel |
| Jenis keramik: | Alumina ceramic;ZTA ceramic; Keramik alumina; keramik ZTA; HPA ceramic keram | Konten Alumina: | 92% /95% AI2O3; 99% aluminium |
| Aplikasi: | Loader, Mesin Konstruksi, Mesin Metalurgi, Pabrik Semen, Mesin Pertambangan, Pembangkit Listrik Tena | Lainnya: | Liner karet dan liner poliuretan |
| Kode HS: | 6909120000 | ||
| Menyoroti: | Ubin Keramik Zirkonia 20% Kustom,Karet Anti Benturan yang Didukung Baja,Karet Didukung Baja Anti Benturan Liner |
||

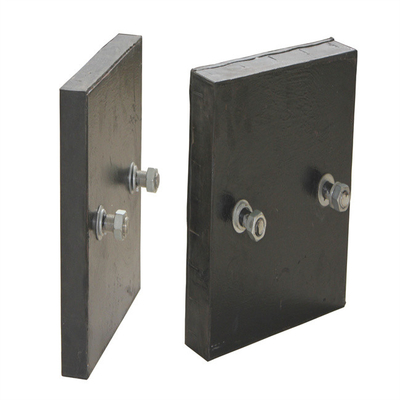

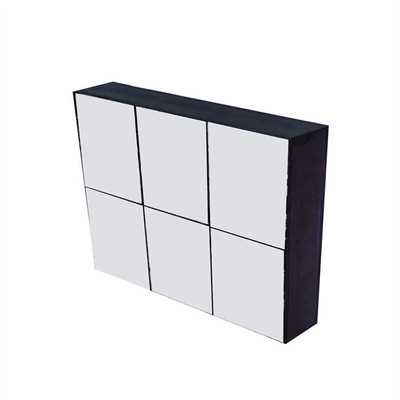

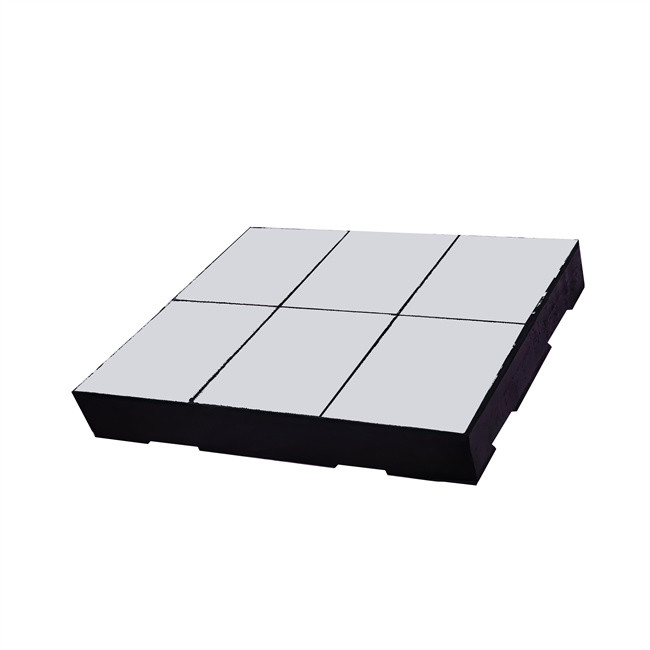

Custom 20% Zirconia Ceramic Tile Liner Anti Impact Ceramic Backing Plate
Ceramic Wear Liner Description:
Zirconia ceramic tile liner is a type of wear-resistant liner used to protect equipment from abrasion and impact. It consists of high-density zirconia ceramic tiles or panels that are arranged in a specific pattern and bonded to a substrate such as steel or rubber.
The unique properties of zirconia ceramics, including high hardness, low friction, and excellent thermal shock resistance, make them an ideal choice for use in demanding industrial applications. Zirconia ceramic tile liners can be customized to fit almost any shape or size of equipment, providing effective protection against wear and reducing maintenance costs.
Ceramic Wear Liner Specification:
|
Dimension ( L×W×T)
|
Thickness details
|
||
|
300*300*12mm
|
6mm ceramic +6mm rubber
|
||
|
250*250*15mm
|
10mm ceramic +5mm rubber
|
||
|
250*300*16mm
|
12mm ceramic +4mm rubber
|
||
|
500*500*15mm
|
10mm ceramic +5mm rubber
|
||
|
500*400*20mm
|
12mm ceramic +8mm rubber
|
||
|
500*500*30mm
|
20mm ceramic +10mm rubber
|
||
|
300*300*63mm
|
50mm ceramic +13mm rubber
|
||
|
500*500*63mm
|
50mm ceramic +13mm rubber
|
Ceramic Wear Liner Features:
Ceramic Wear Liner Install method:
| Bolt On | Cermaic Rubber Liners are produced with steel backing plate and studs |
| Bolt On | Ceramic wear liner with steel plate and countersinks, such liners can be bolted on to your chute |
| Bonding on | CN layer backed ceramic wear liners can be bonded to your facility by adhesive |
| Magnetic Ceramic liners | Easy to install |
Ceramic Wear Liner Application:
Ceramic wear liners are commonly used in industrial applications to protect equipment and surfaces from abrasive or corrosive materials. They can be applied to chutes, hoppers, conveyor systems, and other areas where material flow causes wear and tear. Ceramic wear liners offer excellent resistance to high temperatures, impact, and abrasion, making them ideal for use in mining, cement, steel, and power generation industries.
Why choose us:
We are professional manufacturer of belt conveyor components and related products. We produce various kinds of belt cleaner, belt sealing skirting, pulley lagging, ceramic rubber liner,etc, to meet different applications, custom size and structure are available.
We will be your reliable partner and supplier.
1. Over 20 years experience in wear products and conveyor accessories.
2. Over 10 years experience in exporting, UK, France, Chile, Canada, USA, Finland, Australia, Russia, Indonesia, Thailand, etc.
3. SGS audited supplier.
4. ISO9001:2015 certified factory.
5. Strict QC/QA makes sure high quality and consistency.
We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.
